Together with Intertech Global Energy Solutions, we have supplied and installed 23 emergency power units for a data center.

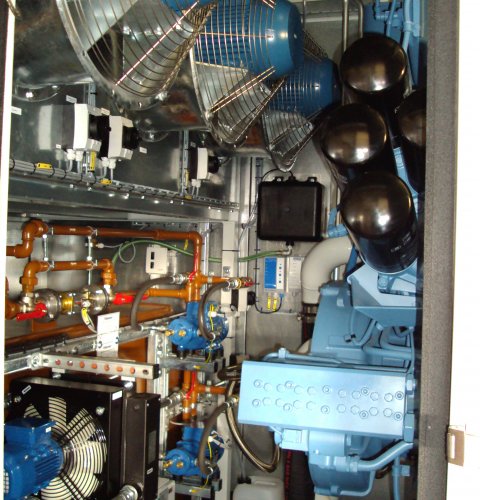

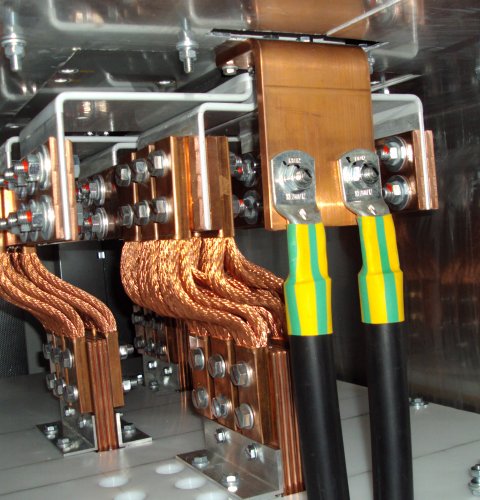

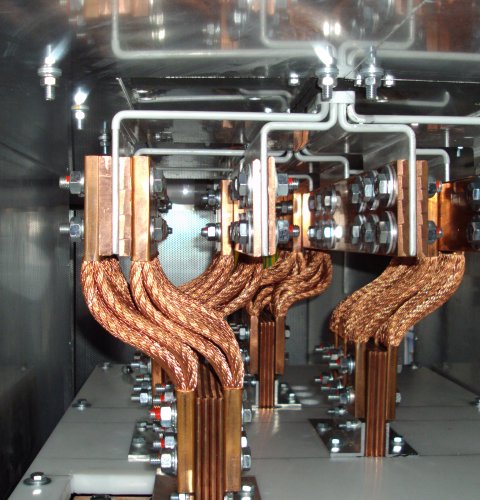

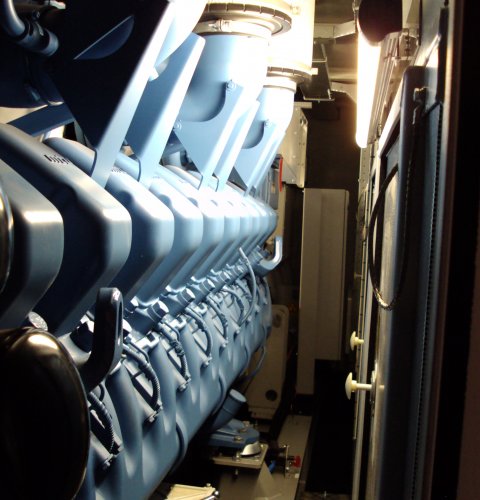

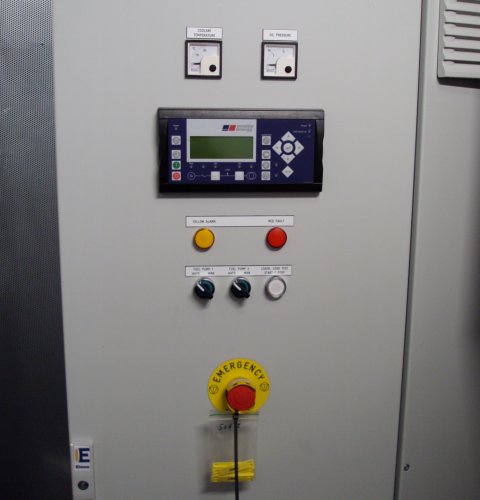

The machines are placed in specially built 40ft containers, each with its own control system. Elmon has built all panels for this and provided the internal cabling for the machines. The operating system is equipped with a Deif AGC4 controller, the main power panel is equipped with 2x 5000A breakers. 1 for the load to be absorbed in the event of a mains failure and 1 for periodic testing of the sets on a load bank. On location we have made the installation for the fuel system, this is located outside the container, the bulk tank is approximately 60 meters from the container.
